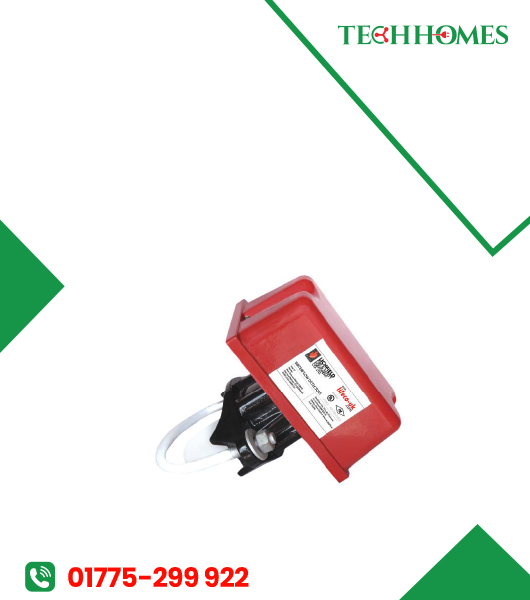

LIFECO LF-WFS-450 Water Flow, Saddle Type, 4″ (100mm)
The LIFECO LF-WFS-450 Water Flow Saddle Type 4″ (100 mm) offers dependable flow detection in fire-protection piping. With FM/UL approval, a saddle-mount design and robust construction, it signals water movement to protect systems from unnoticed flow or malfunction—ideal for commercial or industrial fire-sprinkler installations.
Key Features
- Vane-type flow detection
- Saddle-mount for easy installation
- FM/UL certified for fire systems
- Rated up to 450 psi working pressure
- Suitable for 4″ (100 mm) pipe size
- Dual SPDT micro-switches included
৳ 0.00
Description
In fire-sprinkler systems, early detection of water flow is critical. The LIFECO LF-WFS-450 addresses this: when water flows through a 4″ (100 mm) pipe, the internal vane mechanism detects the movement and triggers an alarm signal via its dual SPDT micro-switches. This helps facility managers and fire-safety engineers monitor system activity, verify valve openings, or detect unintended flows. Unlike generic flow sensors, this model is specifically designed for wet-pipe fire protection systems, with FM/UL approval and a heavy-duty saddle mount that clamps securely onto the branch pipe without full re-routing. Its high pressure rating (up to 450 psi) and rugged construction ensure reliability in demanding industrial or commercial buildings. Whether deployed in a high-rise, manufacturing plant, data centre or institutional facility, the LF-WFS-450 offers peace of mind by ensuring that any significant water flow — such as caused by a sprinkler activation or valve release — does not go unnoticed. Its dedicated design, certification and ease of integration make it superior to generic flow switches not specifically rated for fire-life-safety use.
Specifications
- Model: LF-WFS-450 (saddle-type water flow switch) lifeco-uk.com+1
- Pipe size: 4″ (100 mm) nominal diameter (also available in other sizes from 2″ to 8″) lifeco-uk.com+1
- Working pressure: up to approximately 450 psi (≈31 bar) lifeco-uk.com+1
- Flow sensitivity for alarm: greater than approx. 15 L/min (varies by size) lifeco-uk.com
- Mounting: saddle-type (clamp or bolt onto existing pipe branch) lifeco-uk.com
- Switch output: dual micro-switches (SPDT) for signalling flow / no-flow (typically) macombgroup.com+1
- Approvals: FM approved (model listed under FM 1042 for vane-type waterflow detectors) lifeco-uk.com+1
- Installation orientation: suitable for wet fire-protection piping systems (typically horizontal or vertical up-flow)
- Materials: durable corrosion-resistant housing and mechanism, designed for fire-sprinkler conditions (specific materials per datasheet) lifeco-uk.com
- Colour/finish: as per manufacturer standard (typically industrial grey or factory finish)
- Operating temperature: designed for standard fire-protection ambient conditions (manufacturer data sheet to confirm exact range)
- Mounting hole-size / branching dimensions: as per version; for 4″ size the saddle tap hole and clamp are sized accordingly per datasheet lifeco-uk.com
For customers in Bangladesh, the LIFECO LF-WFS-450 is available through authorized fire-safety equipment distributors. The current market price reflects the certified nature of the device, import duties, and the protective-system domain—please request a quotation in BDT inclusive of delivery and local certification support.
