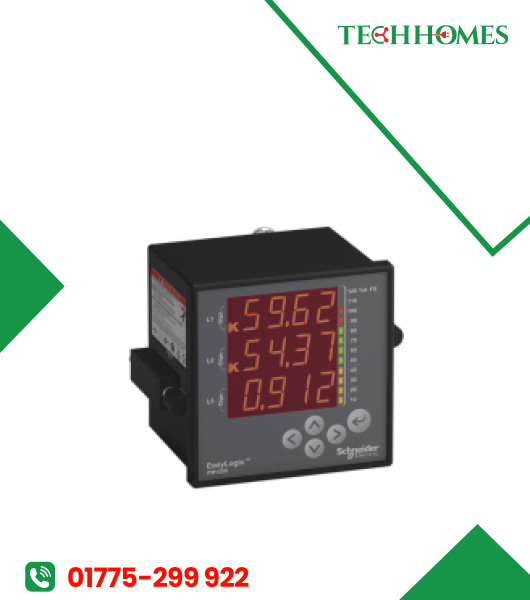

METSEPM1200
High-performance power supply designed for industrial automation, providing reliable and efficient energy distribution for control systems
Key Features
- Measures voltage, current, power, energy
- Monitors frequency and power factor
- Supports up to 9th harmonic analysis
- LED digital display with 3‑line readout
- Modbus RS‑485 communication port
- Works on 44–277 V AC/DC supply
৳ 0.00
Description
The METSEPM1200 is a powerful yet compact power meter ideal for commercial buildings, factories, data centers, or any facility needing detailed energy insight. Instead of relying on simple meters that only show energy consumption, this device goes further — tracking active and reactive power, current, voltage, frequency, power factor, and even harmonic distortion up to the 9th order. This gives facility managers and electricians a comprehensive view of electrical performance.
When power quality issues, unbalanced loads, or inefficient energy use arise, METSEPM1200 allows you to detect anomalies early and take corrective action — helping avoid equipment damage, reduce energy costs, and plan maintenance proactively. The built‑in LED display offers immediate visual feedback, while the Modbus RS‑485 communication port enables connection to building management systems (BMS) or energy‑monitoring software for remote monitoring and logging.
Because it supports a wide supply voltage range (44–277 V AC or DC), the meter is versatile — suitable for various power systems. Its compact panel‑mount form factor makes installation neat and space-saving. Compared to conventional manual meters or older analog models, METSEPM1200 provides far more data, improved accuracy, and digital integration — making it an essential upgrade for modern electrical installations.
Specifications
- Model / Part Number: METSEPM1200 (PM1200 series) Stoneway Electric Supply+1
- Product Type: Three-phase power meter / energy meter Stoneway Electric Supply+1
- Measured parameters: Voltage, Current, Active Power, Reactive Power, Apparent Power, Active/Reactive Energy, Frequency, Power Factor, Harmonics (up to 9th) One Electric+1
- Supply Voltage: 44 to 277 V AC or DC, 50/60 Hz One Electric+1
- Measuring Voltage Range: 80 to 480 V AC (phase-to-phase); with external VT up to 999 kV AC Stoneway Electric Supply+1
- Measuring Current Range: 50 mA to 6 A (direct), or via CT input (0–5 A or 0–1 A) Stoneway Electric Supply+1
- Accuracy: ±1 % for power, current, voltage, energy, apparent power, power factor; ±0.1 % for frequency Stoneway Electric Supply+1
- Display: LED, 3 lines with 4 digits each One Electric+1
- Sampling Rate: 20 samples per cycle Stoneway Electric Supply+1
- Communication: Modbus via RS‑485 (19.2 kbps) for integration with energy‑management systems ETD+1
- Harmonic Analysis: Up to 9th harmonic to monitor power quality and distortion One Electric+1
- Panel Dimensions / Mounting: 96 mm × 96 mm front, ~80 mm depth for flush panel mounting; IP51 front / IP40 rear Steiner Electric+1
- Operating Conditions: Indoor installation; ambient temperature range approx. –10 °C to +60 °C; suitable for relative humidity 5–95% Scribd+1
METSEPM1200 is available through authorized electrical equipment distributors and industrial suppliers in Bangladesh. Stock levels may vary depending on import availability and distributor inventory. Contact your local supplier to confirm current availability, shipping time, and whether calibration or warranty support is included.
