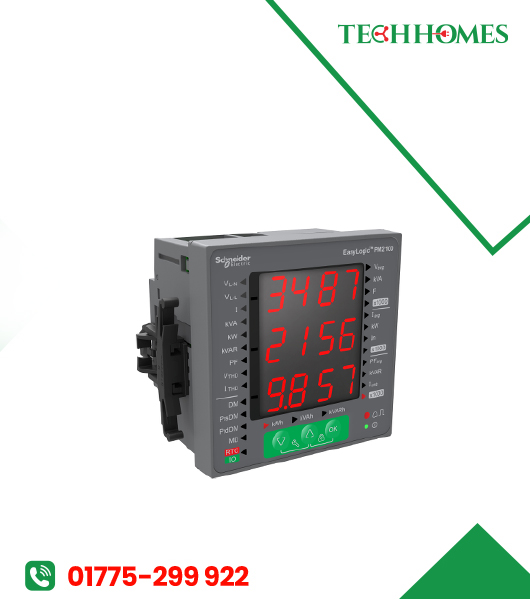

Schneider METSEPM2130
The Schneider METSEPM2130 is a robust energy meter designed for residential and commercial use. It provides accurate measurement of energy consumption, helping optimize energy use and reduce costs. Its reliable performance and easy integration into smart home systems make it perfect for enhancing energy efficiency and supporting sustainability in modern buildings.
Key Features
- Measures up to 31st harmonic
- LED display for clear read-out
- RS-485 communication with Modbus RTU
- High accuracy class 0.5S for active energy
- Panel-mount 96 × 96 mm format
- Records energy consumption logs and peak demand
৳ 0.00
Description
For facility managers, system integrators and installation professionals, the METSEPM2130 offers a reliable solution for managing electrical distribution, sub-billing and power-quality monitoring. In contexts such as commercial buildings, manufacturing plants or large residential complexes, understanding not just energy consumption but harmonic distortion, unbalance and peak demand can drive cost savings and operational efficiency. Thanks to its support for measuring up to the 31st harmonic and capturing detailed data logs, this meter goes far beyond basic kilowatt-hour tracking. It enables you to identify problem loads, implement corrective actions and allocate energy costs accurately across tenants or production lines. The RS-485 interface and Modbus RTU protocol allow integration into SCADA or building management systems, simplifying remote monitoring and reporting. Its compact 96 × 96 mm panel size means it fits standard cut-outs and is suited for retrofit or new installations. Compared to general energy meters, this model offers greater depth of measurement, higher accuracy and better data interfaces — reducing unplanned maintenance, improving transparency and enhancing system control. For your agency handling fire service, home automation and parking system installations in Bangladesh, the METSEPM2130 brings a professional-grade monitoring component that upgrades the value of your electrical control panels and energy-management offerings.
Specifications
- Model: METSEPM2130 (EasyLogic PM2130) iPortal2+1
- Device type: Power & Energy meter, three-phase measurement up to 31st harmonic iPortal2+1
- Accuracy: Active energy class 0.5S, reactive energy class 1.0, apparent power ±0.5% iPortal2
- Voltage measurement range: 35-480 V AC phase-to-phase; 20-277 V AC phase-to-neutral; with external VT up to 480-999 kV AC iPortal2
- Current measurement: 1 A or 5 A rated input; CT secondary connection iPortal2
- Display: Three rows of bright red LED, digits height 14.2 mm, 12 digits display capacity iPortal2
- Communication: RS-485 terminal block, Modbus RTU protocol, baud up to 38.4 kbps iPortal2+1
- Mounting: Panel mount or flush mount; cut-out ~92 × 92 mm; bezel 96 × 96 mm; depth 61.64 mm embedded iPortal2
- Power supply: 80-277 V AC 45-65 Hz or 100-277 V DC ±10% iPortal2
- Ambient temperature: Operation –10 °C to +60 °C; storage –25 °C to +70 °C iPortal2
- Enclosure/IP rating: IP54 front panel, IP30 body iPortal2
- Material and weight: Polycarbonate housing; net weight approx 300 g iPortal2+1
- Data features: Logs for energy consumption, demand values, min/max values; real-time clock built-in iPortal2
In the Bangladesh market, this meter is offered at a competitive professional-grade level — reflecting its advanced harmonic measurement, high accuracy and remote monitoring capabilities — providing excellent value for energy management systems, automation panels and billing-subdivision installations without compromising on quality or future-proofing.
