132F0059 FC-051P15KT4E20H3BXCXXXSXXX

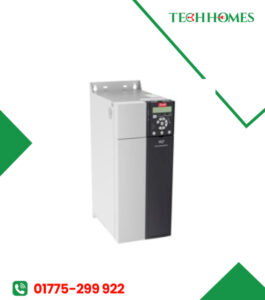

Click to enlarge
FC-051P11KT4E20H3BXCXXXSXXX
FC-051P11KT4E20H3BXCXXXSXXX | 132F0058 VLT® Configurators ৳ 0.00
Back to products
FC-051P22KT4E20H3BXCXXXSXXX
FC-051P22KT4E20H3BXCXXXSXXX | 132F0061 VLT® Configurators ৳ 0.00

132F0059 FC-051P15KT4E20H3BXCXXXSXXX

Discover the 132F0059 FC-051P15KT4E20H3BXCXXXSXXX VLT® MicroDrive from Danfoss. Find product specifications, technical documentation, and explore applications for this high-performance AC drive.

Key Features

  • Frequency Converter
  • FC-051P15KT4E20H3BXCXXXSXXX
  • VLT® Micro Drive FC-51
  • (P15K) 15 KW / 20 HP, Three phase
  • 380 – 480 VAC, (E20) IP20 / Chassis
  • (H3) RFI Class A1/B (C1)

৳ 0.00

Description
Specification
Datasheet
Review & Q & A

Description

132F0059 FC-051P15KT4E20H3BXCXXXSXXX

The Danfoss VLT® MicroDrive FC-051P15KT4E20H3BXCXXXSXXX is a robust and versatile solution for motor control, delivering exceptional performance, energy efficiency, and operational reliability. Whether for industrial machinery or HVAC systems, this drive is a trusted choice for professionals seeking quality and performance.

VLT® MicroDrive FC51 051 15kW, 3×380-480V, With dynamic braking, IP20, RFI A1 + B1 reduction; Fharmonic, Standard cable entry, No adaptation, Varnished cards, No line switch FC-051P15KT4E20H3BXCXXXSXXX

FC-051P15KT4E20H3BXCXXXSXXX

Frequency Converter.132F0059 FC-051P15KT4E20H3BXCXXXSXXX. VLT® Micro Drive FC-51. (P15K) 15 KW / 20 HP, Three phase. 380 – 480 VAC, (E20) IP20 / Chassis. (H3) RFI Class A1/B (C1). Brake chopper. No Loc. Cont. Panel. Coated PCB, No Mains Option. M4-FRAME.



Specifications

Gross weight 6.39 kg
Net weight 6 kg
Volume 21.742 dm3
EAN 5702427554450

VLT® MICRO DRIVE FC 051 SERIES

Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® Micro Drive FC-
Micro Drive Series 051 51
Power Rating P15K (P15K) 15 KW / 20 HP
Phase T Three phase
Mains Voltage 4 380 – 480 VAC
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H3 (H3) RFI Class A1/B (C1)
Brake – Safe Stop B Brake chopper
LCP X No Loc. Cont. Panel
Coating PCB C Coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Frame Size M4 M4-FRAME
Typecode Part 1 FC-051P15KT4E20H3BXCXXXSXXX
Modelcode01 FC-051P15KT4E20H3BXCXXXSXXX
Product Catalog NO_VIEW NO VIEW
Calculated Gross Weight [kg] 6.3
Calculated Net Weight [kg] 6
ECCN EU Y901
ECCN US 3A999.a
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
Recommended Plant ERR01

What is the Price of 132F0059 FC-051P15KT4E20H3BXCXXXSXXXin Bangladesh?

Datasheet

PDF_file_icon.svg
Download Datasheet
