Bosch CCSD-CURD Conference Control (1000D)
Bosch CCSD-CURD Conference Control – Powerful and flexible conference control system, seamless integration, intuitive interface, advanced features, ideal for boardrooms and meeting rooms.
Key Features
- Plug-and-play functionality for quick and easy connection of up to 80 Discussion Devices
- Intuitive web browser interface control for advanced configuration and control
- Built‐in MP3 recorder with internal memory and USB recording
- Built‐in Digital Acoustic Feedback Suppression (DAFS) for ensuring superior speech intelligibility
- On-board support for automatic HD camera control
৳ 0.00
Description

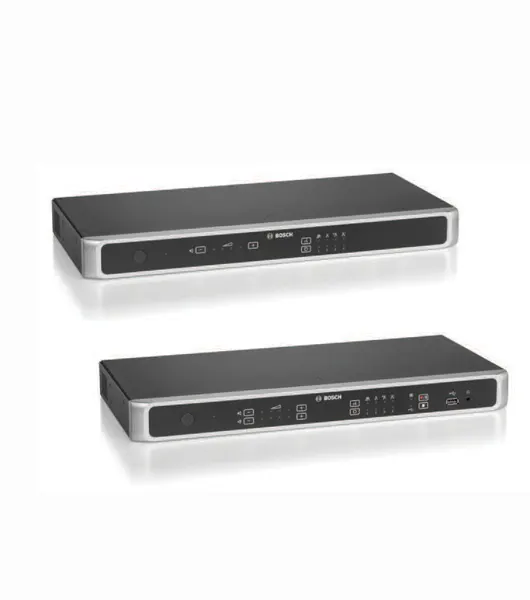

Bosch CCSD-CURD Conference Control Unit
The Bosch CCSD-CURD Conference Control unit is a device designed to power and manage modern digital discussion systems. With its advanced features, intuitive controls, and seamless integration capabilities, the CCSD-CURD ensures efficient communication in professional settings such as conferences, boardrooms, and courtrooms. The Control Unit is the main component of the CCS 1000 D Digital Discussion System. It supplies DC power to all connected Discussion Devices (CCSD‐DS/ CCSD‐DL) and monitors and controls the discussion system.
The Bosch CCSD-CURD Conference Control Supports up to 80 Discussion Devices with a single unit, expandable to 245 devices using Extension Units (CCSD‐EXU). Touch-button operation and intuitive LED indicators make configuration and monitoring simple. Rear ports allow integration with audio, Ethernet switches, Bosch HD Conference Domes, and more. Easily access and adjust system settings via a tablet, laptop, or PC.
Advanced Options: Two models available:
- CCSD‐CU: Standard Control Unit.
- CCSD‐CURD: Includes MP3 recording and Digital Acoustic Feedback Suppression (DAFS), with optimized outputs for courtroom applications.
Bosch CCSD-CURD Conference Control Functions:
Quickly connect or remove Discussion Devices and cameras without needing a system restart, ensuring fast setup and reconfiguration. Bosch CCSD-CURD Conference Control Manage microphone settings, system configurations, and energy-saving modes. Select fixed IP addresses and update changes seamlessly. Use the RESTful API for integrations like webcasting, PTZ cameras, and third-party microphone controls. Configure the number of active microphones (up to 25 via the browser). Set interruption microphones for priority speakers, like guest speakers at podiums.
Basic and advanced system settings, including microphone management, can be easily viewed and configured using a web browser interface in combination with a tablet, laptop or PC.
- Changes made in the web browser interface are automatically updated in the Control Unit and vice‐versa.
- An energy saving mode in the web browser interface allows the Control Unit and connected devices to automatically shut down if they are not used for two hours.
- The standby mode can be used during a meeting break. When this mode is selected, the Control Unit is set to standby and all Discussion Devices are switched off.
- The web browser interface also has an option to select a fixed IP address.
Specifications
| Mains Voltage | 100 to 240 VAC ±10% |
| Current Consumption | Maximum 0.6 A (100 VAC) to 0.2 A (240 VAC) |
| DC Output | 24 V ±1 V (Current Limited), to Discussion Devices |
| Number of Devices Supported | Number of Discussion Devices per Control Unit: Maximum 40 Devices per Trunk Connector |
| Volume Control | Discussion Device Loudspeakers Volume Control: 15 Steps of 1.5 dB (Starting from -10.5 dB) |
| Limit Threshold Level | Limit Threshold Level to Unit: 12 dB Above Nominal Level |
| Gain Reduction | Gain Reduction Due to Number of Open Microphones (NOM): 1/SQRT (NOM) |
| Sample Rate | 44.1 kHz |
| Nominal Input | <0.5% at 85 dB SPL |
| Maximum Input | <0.5% at 110 dB SPL |
Connections
| Rear Panel | 1 x 4-Pin Female 24 VDC Power Input 2 x 6-Pin Female, Loop Through 1 x RJ45 Ethernet 1 x 3-Pin Female XLR, Microphone Input with Phantom Supply 1 x RCA Input for External Audio Source 1 x RCA Output for Sound Reinforcement System 1 x RCA Input/Output |
Audio
| Inputs | XLR Nominal Microphone Input: -56 dBV XLR Maximum Microphone Input: -26 dBV RCA Nominal Input: -24 dBV (±6 dB) RCA Maximum Input: 6 dBV S/N: >94 dBA Frequency Response: 30 Hz to 20 kHz |
| Outputs | RCA Nominal Output: -24 dBV (+6/-24 dB) RCA Maximum Output: +6 dBV S/N: >102 dBA Frequency Response: 30 Hz to 20 kHz |
Environmental
| Operating Temperature | 41 to 113°F / 5 to 45°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Relative Humidity | 5 to 98%, Non-Condensing |
Certifications
| Control Unit | CE, UL, FCC, CSA, ICES-003, KCC, RCM, EAC, RoHS, SASO |
| Power Adapter | WEEE, EPS, KC, K-MEPS, MEPS, PSE, CCC, BSMI |
Mechanical
| Material of Construction | Top and Base: Metal |
| Mounting | Tabletop 19″ 1 RU Rack |
| Dimensions | 1.8 x 17.3 x 7.9″ / 45 x 440 x 200 mm, Including Feet Height of Feet: 0.2″ / 5.5 mm |
| Weight | 7.1 lb / 3.2 kg Approximate |
