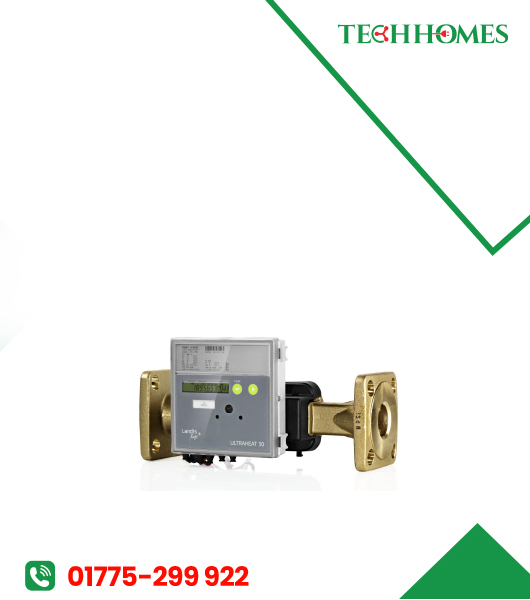

DN50 flange PN25 BTU Meter 15 m3/h | UH50-G65C-EN00-E 0M-AB00-T2B-PE
Discover the DN50 flange PN25 BTU Meter 15 m3/h flow rate, ideal for precise thermal energy measurement. Perfect for HVAC systems, industrial applications, and energy monitoring. Explore accurate performance with reliable BTU metering solutions.
Key Features
- Battery or mains operated
- Optical interface according to EN 62056-21:2003
- Big range of communication modules for remote readout and system integration
- 2 module slots for using 2 communication modules coincidental
- Also operable as a flow meter, cooling or combined heat/cold meter
- Self-diagnosis
৳ 0.00
Description
DN50 flange PN25 BTU Meter 15 m3/h
The DN50 Flange PN25 BTU Meter with a 15 m³/h flow rate is a highly reliable and efficient thermal energy measurement device, designed for accurate monitoring and management of energy consumption in heating and cooling systems. The model UH50-G65C-EN00-E 0M-AB00-T2B-PE stands out in terms of durability, precision, and seamless integration into industrial and commercial applications.
How the BTU Meter Works
The DN50 flange PN25 BTU Meter 15 m3/h operates on an advanced ultrasonic measurement principle. DN50 flange PN25 BTU Meter 15 m3/h calculates the thermal energy consumed by measuring the difference in temperature between the inlet and outlet water, combined with the volume of water passing through the meter. This data is processed and displayed in real-time, providing precise energy consumption insights.
Installation and Maintenance Guidelines
- Ensure proper alignment of the DN50 flange during installation.
- Verify the PN25 pressure rating compatibility.
- Regularly calibrate the temperature sensors.
- Use standard communication protocols for remote monitoring.
Why Choose DN50 flange PN25 BTU Meter 15 m3/h?
- Reliable Performance: Trusted by professionals for consistent results.
- Energy Efficiency: Optimized for reducing energy wastage.
- Advanced Technology: Ultrasonic sensors for real-time monitoring.
- User-Friendly Interface: Easy-to-read data display.
The DN50 Flange PN25 BTU Meter 15 m³/h | UH50-G65C-EN00-E 0M-AB00-T2B-PE is a top choice for professionals in HVAC, industrial, and commercial sectors. Its precision, durability, and advanced features make it an essential tool for efficient energy monitoring and management.
Specifications
| General | |
| Measuring accuracy | Class 2 or 3 (EN 1434) |
| Environment class | A (EN 1434) for indoor installation |
| Mechanical class | M1 *) |
| Electromagnetic class | E1 *) |
| Ambient humidity | < 93 % rel. humidity at 25°C, without condensation |
| Max. height | 2000 m above sea level |
| Storage temperature | -20 … 60 °C |
| Electronic unit | |
| Ambient temperature | 5 … 55°C |
| Housing protection rating | IP 54 according to EN 60529 |
| Safety class Line 110 / 230 V AC |
II according to EN 61558 |
| Safety class
Line 24 V ACDC |
III according to EN 61558 |
| Operation threshold f. T | 0.2 K |
| Temperature difference T | 3 K … 120 K |
| Temperature measurement range | 0 … 180°C |
| LCD | 7 digits |
| Temperature sensor | |
| Type | Pt 500 or Pt 100 According to EN 60751 |
| Temperature range | 0 … 150°C
(up to 45 mm overall length) |
| Volume measurement unit | |
| Protection class | IP 54 / IP 65 / IP 68 according to EN
60529 |
| Mounting place | Hot side / cold side |
| Measuring range | 1:100 |
| Temperature range | 5 … 130°C
National type approvals may be dif- |
| Recommended… …heating application |
10 … 130°C |
| …cooling application | 5 … 50°C |
| Maximum overload | 2,8 × qp |
