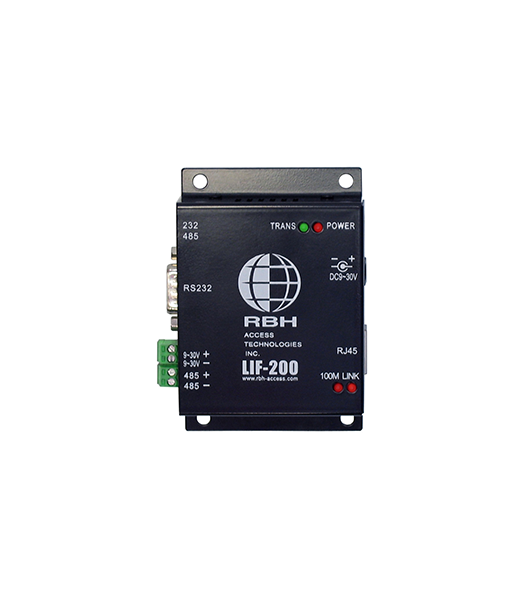

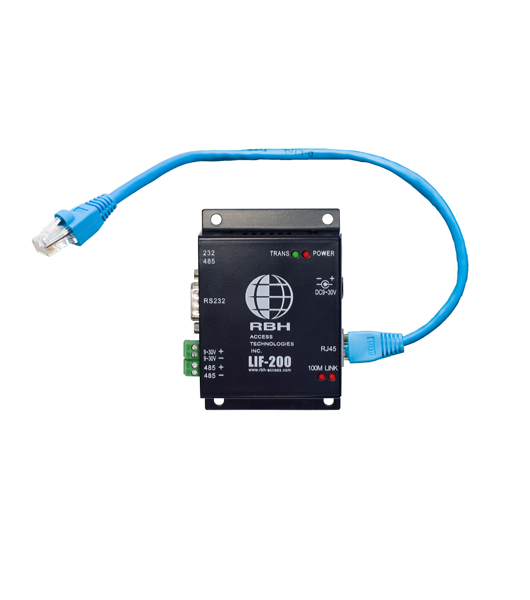

RBH-LIF-200-Ethernet Gateway Module

RBH-LIF-200-RBH ACCESS TECHNOLOGIES

The LIF-200 is an RS232/RS485 to TCP/IP converter integrated with a robust system and network management features designed for industrial equipment to be accessed and controlled via Intranet or Internet. By integrating RTOS (Real Time Operating System) and complete TCP/IP protocol stack capability, RBH‟s LIF-200 provides not only a robust and high performance system for connecting your device to a Network, but also ease installation and Internet access.

The LIF-200 Web Configurator is a breeze to operate and totally independent of the operating system platform you use.

TCP/UDP server/client support

The LIF-200 supports four types of connection: TCP server, UDP server, TCP client and UDP client, users can select one of these types depending on your application requirements.

DHCP Client

The DHCP (Dynamic Host Configuration Protocol) client obtains the TCP/IP configuration at start-up from a centralized DHCP server.

PPPoE Over Ethernet

PPPoE is a protocol for connecting remote hosts to the Internet over a DSL connection by simulating a dial-up connection.

Dynamic DNS

With dynamic DNS support, you can have a static hostname alias for a dynamic IP address, allowing the host to be more easily accessible from various locations on the Internet.

Auto-negotiating 10/100Mbps Ethernet

The Ethernet interface automatically detects if it is on a 10 or a 100 Mbps Ethernet.

Full Network Management via Web

This feature allows you to access or manage the device through Internet Explorer or Netscape on any platform. The firmware also can be upgraded via the Web browser.

Backup and Restore configuration

This feature allows you to backup your system configuration to a file and restore from it. For the security reasons the file that is backed-up is in an encrypted format.

RBH-LIF-200

This section will show the basic configuration of the LIF-200. Use the „One Page Quick Setup‟ to connect your device through Intranet or Internet. The LIF-200 supports three IP connection types: Static IP, DHCP and PPPoE. These types are listed in the drop-down menu for the IP Configuration setting. Each setup screen and available features will differ depending on what kind of IP connection type you select. The default setting is „Static IP‟.
