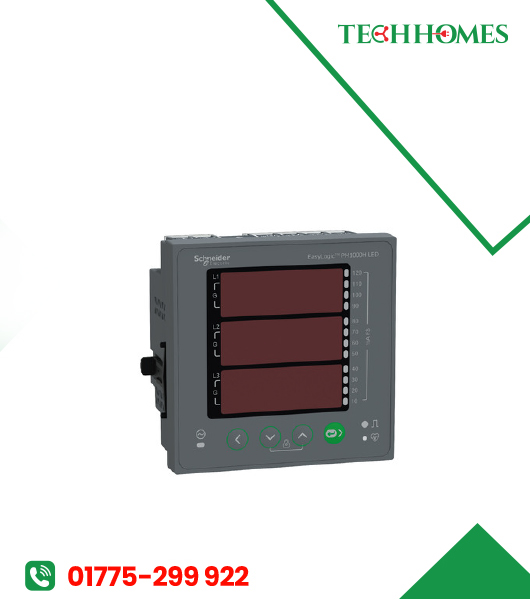

Schneider METSEPM1130HCL05RS
The Schneider METSEPM1130HCL05RS is a high-precision energy meter designed for use in industrial and commercial systems. It offers accurate measurements of electricity consumption, helping optimize energy efficiency and reduce costs. Its durable design and dependable performance make it ideal for integration into building automation systems and energy management solutions.
Key Features
- Dual-source energy and power monitoring
- High accuracy class 0.5 for active energy
- RS-485 communication with Modbus
- Built-in relay for load control or alarm
- Harmon-ic and power-quality analysis
- Panel-mount 96×96 mm format for retrofit
৳ 0.00
Description
For businesses, integrators and system designers in Bangladesh working on fire-service panels, home-automation, parking systems or industrial control boards, the METSEPM1130HCL05RS offers a robust solution to both monitor and manage electrical supply from two sources. Whether you’re switching between grid and generator, tracking usage from renewable and mains, or managing dual feed circuits for redundancy—this meter supports dual-source measurement and offers full monitoring of energy, power, frequency, harmonics and demand. The built-in relay lets you trigger load-shedding or switchover when thresholds are exceeded or secondary source kicks in. Unlike generic meters that only measure one feed or offer minimal functionality, this unit integrates dual-source logic, high-precision class 0.5 measurement, RS-485 communications for SCADA/BMS integration and power-quality analytics—making it ideal for professional installations. The panel-mount form factor (96×96) simplifies fit into existing control panels. In short, this meter helps you gain transparency into energy flows, supports cost allocation, enhances system reliability and ensures you stay ahead of maintenance and inefficiency issues.
Specifications
- Model: METSEPM1130HCL05RS (EasyLogic PM1130H dual-source meter). Thiết bị điện Hoàng Phương+2Schneider Electric+2
- Accuracy: Class 0.5 for active energy according to IEC 62053-22; class 2 for reactive energy. Thiết bị điện Hoàng Phương+1
- Supply voltage: 48–277 V AC (45-65 Hz) or 48–277 V DC. Thiết bị điện Hoàng Phương+1
- Rated current: 1 A or 5 A (primary) with CT input. Thiết bị điện Hoàng Phương+1
- Voltage measurement range: 35–480 V AC between phases; 35–277 V AC phase-to-neutral; up to 999 kV with external VT. Thiết bị điện Hoàng Phương+1
- Display: 12-digit LED display (14.2 mm height digits) plus 3 fields of 4 characters. Thiết bị điện Hoàng Phương
- Communication: RS-485 port with Modbus RTU protocol at 4,800/9,600/19,200/38,400 bps. Geetech Supply+1
- Relay output: 1 built-in relay (300 V AC@2 A) for load control or alarm functions. Thiết bị điện Hoàng Phương
- Panel mounting: Front bezel 96 × 96 mm; depth approx 52 mm (panel cut-out ~92 × 92 mm). Net weight ~300 g. Thiết bị điện Hoàng Phương
- Operating ambient: –10 °C to +60 °C; storage –20 °C to +70 °C; protection: IP51 front, IP30 body. Thiết bị điện Hoàng Phương
- Other features: Displays harmonics (I THD & U THD ±5%), sampling rate 32 samples/cycle, tamper-protection via access code. Thiết bị điện Hoàng Phương+1
In the Bangladesh market this meter is positioned at a premium professional level—reflecting its dual-source capability, high-class accuracy, built-in control relay, RS-485 interface and panel-mount format—providing excellent value for commercial, industrial and automation clients seeking reliable energy monitoring and management.
