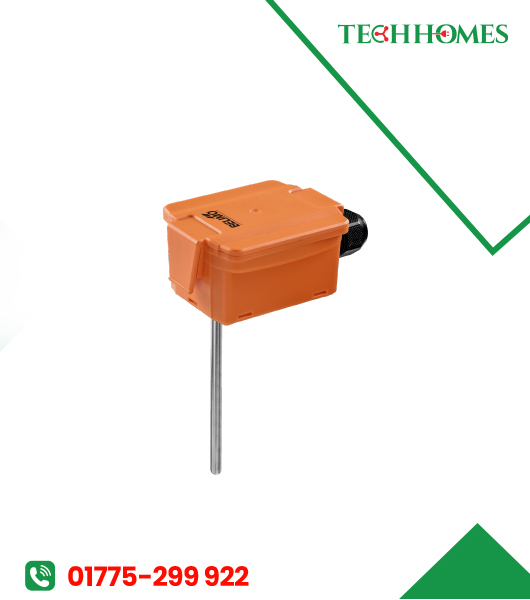

BELIMO 22DT-12N
The BELIMO 22DT-12N is a high-performance actuator used in HVAC systems to regulate air and fluid flow. It provides precise control, ensuring optimal system efficiency and energy management. Its durable design and reliable operation make it ideal for both commercial and industrial applications requiring consistent and accurate system control.
Key Features
- Active sensor with selectable 0–5 V / 0–10 V output
- 150 mm probe length, 6 mm diameter
- Multi-range temperature measurement (-50…160 °C)
- Robust IP65 / NEMA 4X housing for duct or immersion use
- Operates on 24 V AC/DC supply
- Spring-loaded terminal block with easy wiring
৳ 0.00
Description
In modern building automation and HVAC systems, accurate temperature sensing in ducts and pipes is critical for energy efficiency and occupant comfort. The BELIMO 22DT-12N fills this need by delivering a reliable, active output sensor that can adapt to varied measuring ranges and environments. Whether measuring air in an HVAC duct or immersing in a water line (with thermowell), its multi-range capability (from as low as -50 °C up to 160 °C) ensures it can handle many applications. belimo.com+1 The selectable output (0-5 V or 0-10 V) integrates directly with standard building control systems, reducing the need for conversion or auxiliary devices. The rugged housing rated IP65/NEMA 4X protects against dust and water ingress, making it viable even in tough industrial or plant environments. hvac.co.th Compared to simpler passive sensors, this active device reduces error, improves stability and simplifies installation with its plug-in terminal block. Ideal use-cases include HVAC monitoring in commercial buildings, process temperature feedback in industrial plants, and remote measurement in pipework. With the 150 mm probe length and 6 mm diameter, it offers sufficient reach and minimal intrusion for compact systems. In summary, the BELIMO 22DT-12N stands out for its versatile output, robust build, and broad application range, making it a superior choice for demanding temperature sensing tasks
Specifications
- Probe length: 150 mm (for model “N” version) belimo.com+1
- Probe diameter: 6 mm belimo.com+1
- Output signal: selectable 0…5 V or 0…10 V hvac.co.th+1
- Supply voltage: 24 V AC/DC nominal (AC 21.6–26.4 V, DC 13.5–26.4 V) belimo.com
- Power consumption: AC 0.8 VA, DC 0.4 W belimo.com
- Measuring range: selectable (for example S7 = 0…160 °C) belimo.com
- Accuracy: ±0.5 °C @21 °C for certain ranges (e.g., S2/S4) belimo.com
- Protection class/housing: IP65 (IEC EN) / NEMA 4X (UL) hvac.co.th
- Ambient temperature: -35…50 °C (electronics); medium temperature up to -50…160 °C hvac.co.th
- Materials: Probe material V4A stainless steel (1.4404) belimo.com
- Connection: Pluggable spring-loaded terminal block (max 2.5 mm
Available locally in Bangladesh via authorised HVAC sensor distributors, the BELIMO 22DT-12N carries pricing in line with premium building-automation sensors. Expect a competitive rate that reflects its high performance and brand reputation, making it a cost-effective choice for professional installations requiring reliable temperature sensing.
