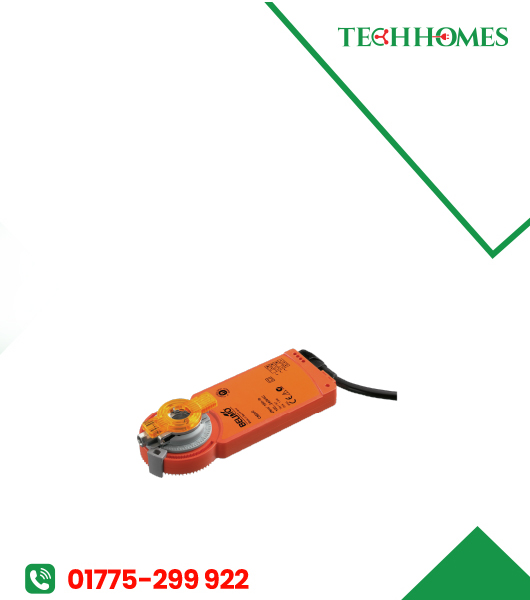

BELIMO CM230-L

The BELIMO CM230-L addresses the need for a dependable actuator in ventilation and HVAC systems where damper control must be efficient and accurate. By delivering a 2 Nm torque rated motor, it can handle air dampers of approximately 0.4 m² in size. belimo.com+2iasautomatika.hu+2 The AC 100–240 V supply enables compatibility with wide voltage ranges common in building automation, supporting both 50 Hz and 60 Hz systems. belimo.com+1 Installation is straightforward: the actuator mounts directly on the damper shaft (Ø 6–12.7 mm) using a universal clamp, with anti-rotation clip included to ensure secure fixation. cgtrading.co.in+1 With an angle of rotation up to 287.5° and the possibility of endless 315° with an end-stop, it adapts to varied damper geometries. belimo.com+1 The device operates quietly (~35 dB) and consumes minimal power (1.5 W running, 1 W holding) which makes it energy efficient. belimo.com+1 The IP54 rating and compliance with reinforced insulation (Protection Class II) ensure durability even in challenging environments. iasautomatika.hu+1 Compared to alternatives that may require more complex mounting or lack universal shaft compatibility, the CM230-L offers a versatile, maintenance-free solution with built-in manual override and high adaptability. For your fire-service, home-automation, or parking-system installations (such as on your MSI Agency offerings), this actuator integrates seamlessly into automated damper control, providing reliable open/close motion for ventilation dampers aligned with safety, automation and efficiency needs.
