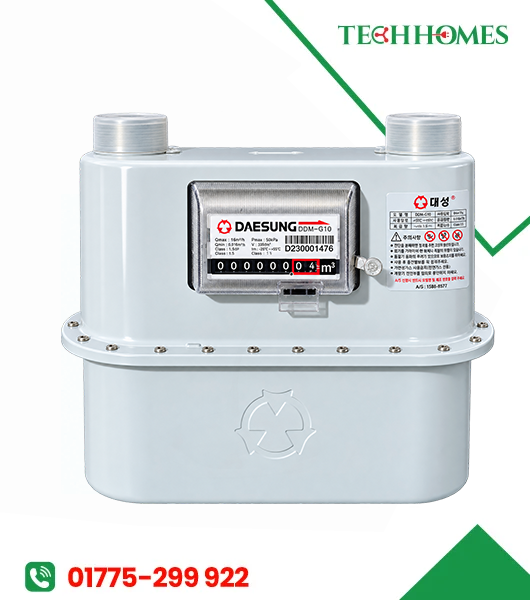

G10 Gas Meter – Industrial Diaphragm Gas Meter
Short Description
The G10 Gas Meter is an industrial gas meter designed for commercial and industrial gas installations, with a maximum flow capacity of 16 m³/h and maximum operating pressure of 0.5 bar.
Product Overview
The G10 is part of the industrial gas meter range and features a steel-based construction designed for commercial and industrial applications. The catalogue specifies a maximum pressure of 0.5 bar and a Qmax of 16 m³/h.
The meter is designed and manufactured in South Korea and produced according to OIML standards
Key Features
-
- G10 industrial gas meter
- Qmax: 16 m³/h
- Maximum pressure: 0.5 bar
- Steel body construction
- DN40 connection
- 280 mm centre-to-centre distance
- Suitable for commercial and industrial installations
- Compact design
- OIML-standard production
৳ 0.00
Description
The G10 is part of the industrial gas meter range and features a steel-based construction designed for commercial and industrial applications. The catalogue specifies a maximum pressure of 0.5 bar and a Qmax of 16 m³/h.
The meter is designed and manufactured in South Korea and produced according to OIML standards
Specifications
| Specification | G10 |
|---|---|
| Model | G10 |
| Meter Type | Industrial Gas Meter |
| Qmax | 16 m³/h |
| Maximum Pressure | 0.5 bar |
| Connection | DN40 |
| Centre-to-Centre | 280 mm |
| Weight | 5.5 kg |
| Body Material | Electro Galvanized Iron (E.G.I.) |
Applications
- Commercial gas installations
- Industrial gas installations
- Gas distribution systems
- Industrial kitchens
- Gas consumption measurement systems
