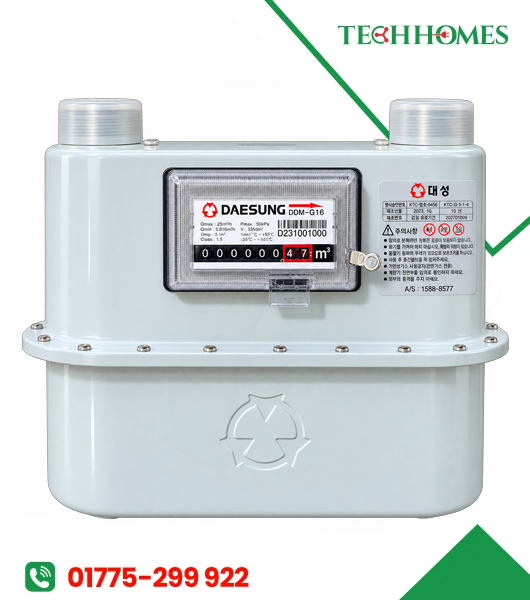

G16 Gas Meter – Industrial Gas Meter
The G16 is designed for higher gas flow requirements in commercial and industrial installations. It features an electro-galvanized iron body and a DN40 connection.
The model is manufactured in South Korea and produced according to OIML standards, according to the supplied catalogue.
Key Features
-
- G16 industrial gas meter
- Qmax: 25 m³/h
- Maximum pressure: 0.5 bar
- Electro-galvanized iron body
- DN40 connection
- 280 mm centre-to-centre distance
- 5.5 kg weight
- Suitable for commercial and industrial installations
৳ 0.00
Description
The G16 Gas Meter is an industrial gas meter designed for commercial and industrial gas installations, offering a maximum flow capacity of 25 m³/h and maximum pressure of 0.5 bar.
Specifications
| Specification | G16 |
|---|---|
| Model | G16 |
| Meter Type | Industrial Gas Meter |
| Qmax | 25 m³/h |
| Maximum Pressure | 0.5 bar |
| Connection | DN40 |
| Centre-to-Centre | 280 mm |
| Weight | 5.5 kg |
| Body Material | Electro Galvanized Iron (E.G.I.) |
এই model-এর technical information catalogue-এর Page 2-এ দেওয়া আছে। Daesung-Diaphgram-Gas-Meter
Applications
- Commercial gas systems
- Industrial gas systems
- Gas distribution networks
- Industrial kitchens
- High-flow gas metering applications
