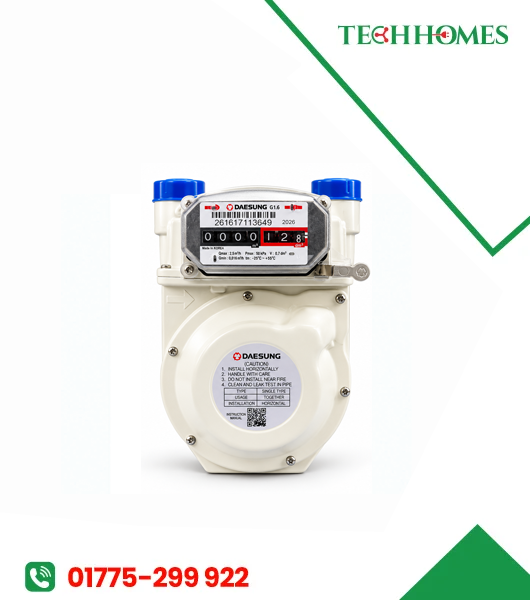

G1.6 Gas Meter – Diaphragm Gas Meter
The G1.6 Gas Meter is a compact diaphragm gas meter designed for accurate gas consumption measurement in residential, commercial and gas distribution applications. With a lightweight aluminium die-cast body and a maximum flow capacity of 2.5 m³/h, it is suitable for applications where reliable and compact gas metering is required.
Product Overview
The G1.6 diaphragm gas meter is designed and manufactured in South Korea and produced according to OIML standards. The meter features a compact aluminium die-cast body and is designed for reliable gas measurement.
It can be used for residential and commercial gas installations, including individual gas metering in multi-unit buildings and gas distribution systems.
Key Features
- G1.6 diaphragm gas meter
- Maximum flow rate: 2.5 m³/h
- Maximum pressure: 1 bar
- Compact and lightweight design
- Aluminium die-cast body
- 3/4″ coupling connection
- 130 mm centre-to-centre distance
- Suitable for residential and commercial installations
- Manufactured in South Korea
- Produced according to OIML standards
৳ 0.00
Description
The G1.6 Gas Meter is a compact diaphragm gas meter designed for accurate gas consumption measurement in residential, commercial and gas distribution applications. With a lightweight aluminium die-cast body and a maximum flow capacity of 2.5 m³/h, it is suitable for applications where reliable and compact gas metering is required.
Product Overview
The G1.6 diaphragm gas meter is designed and manufactured in South Korea and produced according to OIML standards. The meter features a compact aluminium die-cast body and is designed for reliable gas measurement.
It can be used for residential and commercial gas installations, including individual gas metering in multi-unit buildings and gas distribution systems.
Specifications
- Model : G1.6
- Meter Type : Diaphragm Gas Meter
- Qmax: 2.5 m³/h
- Maximum Pressure :1 bar
- Connection :3/4″
- CouplingCentre-to-Centre : 130 mm
- Weight1.5 kg
- Body Material : Aluminium Die Casting
Applications
- Residential gas installations
- Apartment gas metering
- Individual gas consumption measurement
- Commercial gas installations
- Gas distribution systems
- LPG reticulation applications where technically appropriate
